| Manufacturer | Cisco |

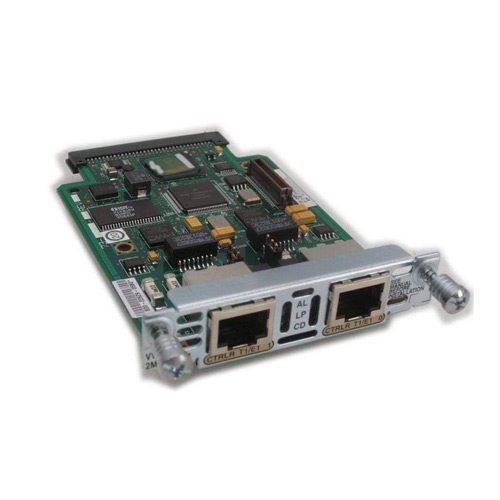

| Product ID | VWIC2-2MFT-T1/E1 |
| Product Description | 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card – T1/E1 |
| Product Type | Voice/WAN Interface Card |
| Marketing Information | The Cisco 2-port T1/E1 multiflex interface cards provide voice and data access to the PSTN domain through TDM ports. They are dual-port trunk interfaces for voice, data, and integrated voice and/or data applications. These cards provide basic structured service for T1 or E1 networks and unstructured service for fractional E1 networks. The cards include an integrated DSU/CSU. Some cards also support the drop-and-insert process, which adds data to a T1 or E1 data stream, or which terminates data from a T1 or E1 data stream to other devices connected to the drop-and-insert equipment |
| Application/Usage | Voice |
| Interfaces/Ports | 2 x T1/E1 WAN |
| Interfaces/Ports Details | 2 x RJ-48C T1/E1 WAN |
| Connectivity Media | Category 5 STP/UTP |
| Data Transfer Rate | 1.54 Mbps T1 2.05 Mbps E1 |
| Management | MIB and Simple Network Management Protocol (SNMP) |
| Protocols | SNMP |
| Status Indicators | AL, LP, CD |
| Additional Information | The card include an integrated data service unit/channel service unit (DSU/CSU) Shielded cables STP Cat 5 should be used on E1 ports Full support for T1 Facility Data Link (FDL) Controller local loopbacks Controller remote loopbacks Firmware to support T1 and E1 Layer 1 homologation User-initiated VWIC reset and field-programmable gate array (FPGA) download Voice support (includes DS0-group and PRI-group configuration) Drop and insert capability MFT VWIC2s have an onboard slot for a multiflex trunk dedicated echo cancellation module (EC-MFT-32 and EC-MFT-64), offering an enhanced echo cancellation capability for demanding network conditions |
| Compatibility | Cisco 2600XM series, Cisco 2691, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series routers Cisco 1700 Series Modular Access Routers Supported Network Module:NM-HDV NM-HDV2 NM-HD-2VE NM-2W NM-1FE1R2W NM-1FE2W-V2 NM-2FE2W-V2 |
| Certifications & Standards | ITU-T G.164 ITU-T G.165 ITU-T G.168 RFC 1406 MIBs:RFC 1406 MIB T1 CSU MIB Support Port Module MIB T1/E1 Line Status Reporting |
